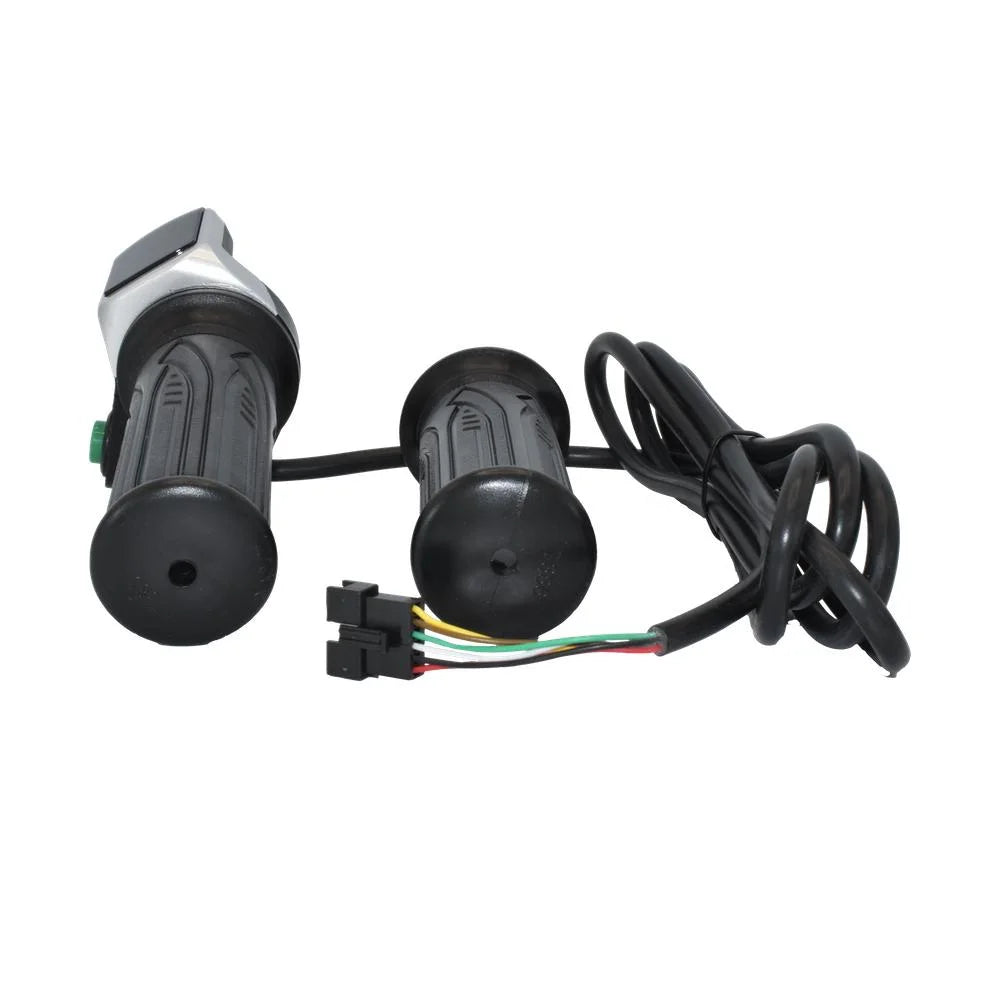

Throttle grip with battery indicator (36V) and push button

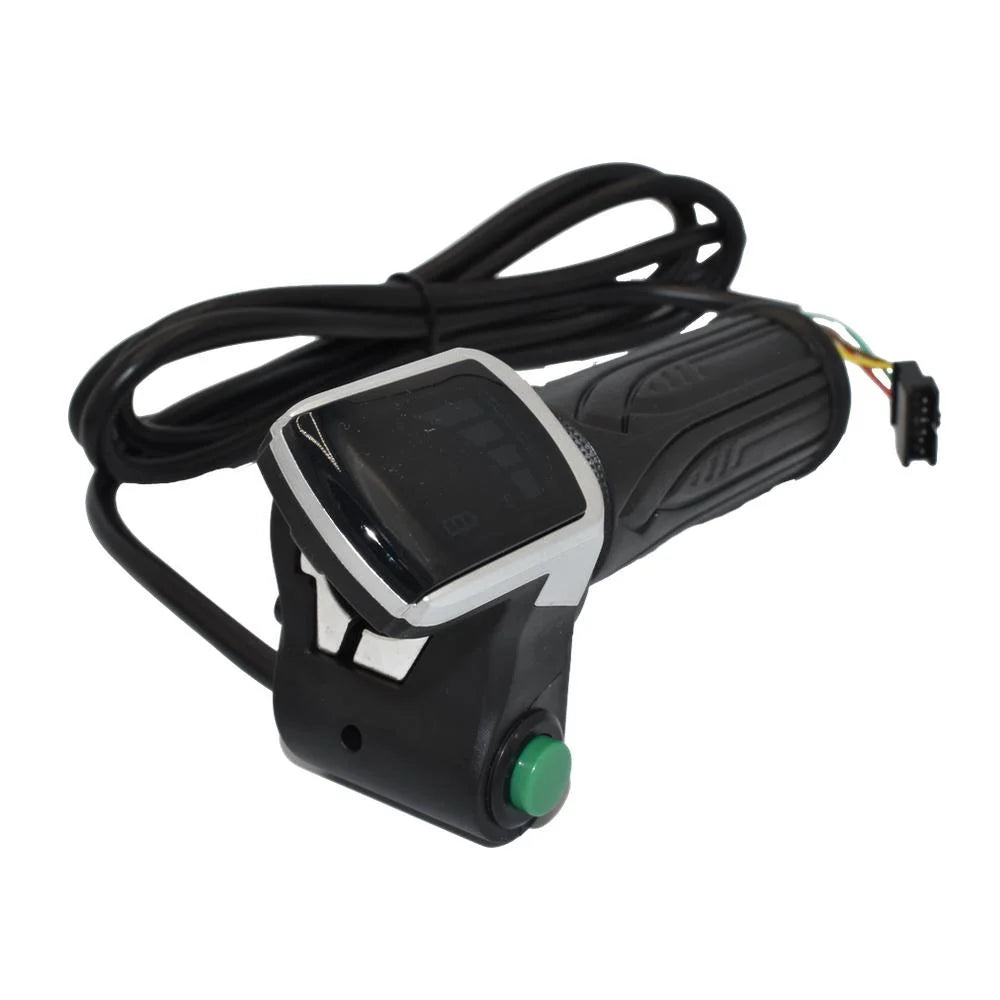

Throttle grip with battery indicator and push button – SM connector

Generic throttle grip suitable for 36V. Connector colour code: yellow/brown – push button *Green – display positive *Black – common negative *white – throttle output *red – throttle positive (continuous 5V input).

The grip throttle features a 36V battery indicator and an integrated push button, providing precise control and a clear display of the battery status. The SM connector ensures secure installation and compatibility with various models of scooters and electric vehicles.

Certification: RoHS
Size: L 150 mm W 66 mm H 85 mm
Weight: 110 g
Waterproof: IP4
Material: Polycarbonate + ABS, PVC.
Wiring: 6 pins
Voltage: 24V/36V/48V/60V
Operating temperature: -20° to 60°
Wire tension: ≥130N
Rotation angle: 0°～70°
Rotational torque: ≥9 N.m
Durability: 100,000 mating cycles

Compatible with the following models: standard compatible
