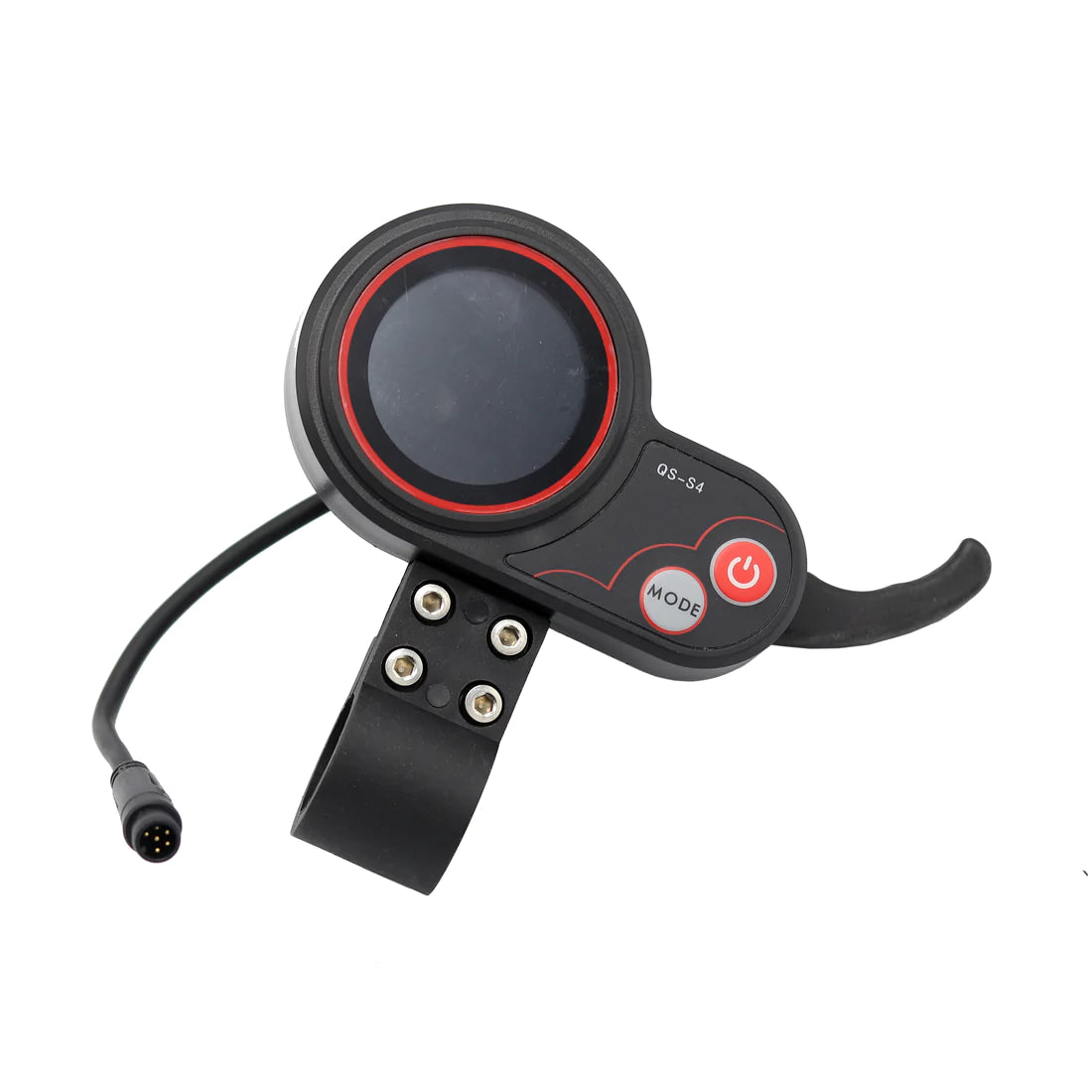

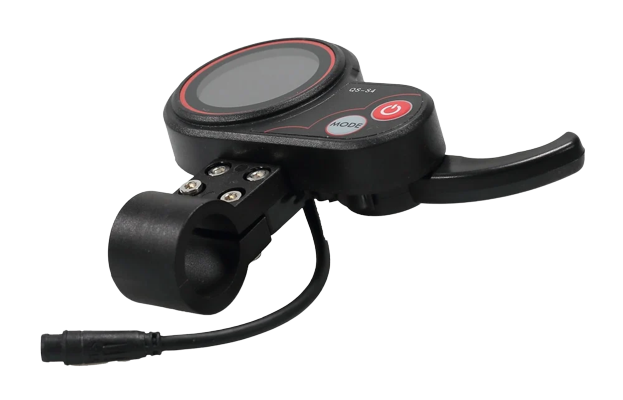

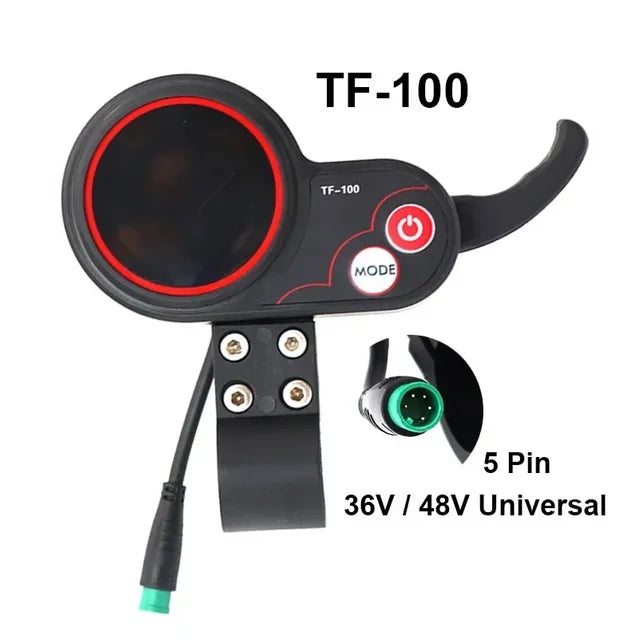

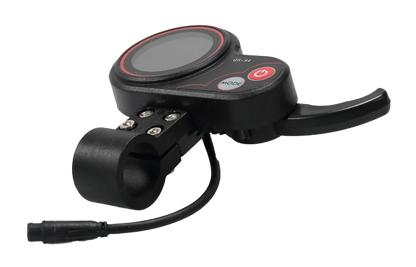

5-pin electric scooter LCD display

LCD display and accelerator for 5-pin electric scooter

LCD display for compatible electric scooters . Note: the display model must be compatible with the controller (5, 6 pins, QS-4).

Please note, the accelerator harness is not included with the screen and the controller must be compatible with the screen.

E01: Motor error. Check the motor wiring or a possible failure of the Hall effect sensors.
E02: Accelerator failure. Possible fault: screen sensor or stuck accelerator lever.
E03: Controller error. General controller failure.
E04: Brake lever error. Faulty brake lever sensor or brake lever activated at ignition time.
E05: Low battery voltage.

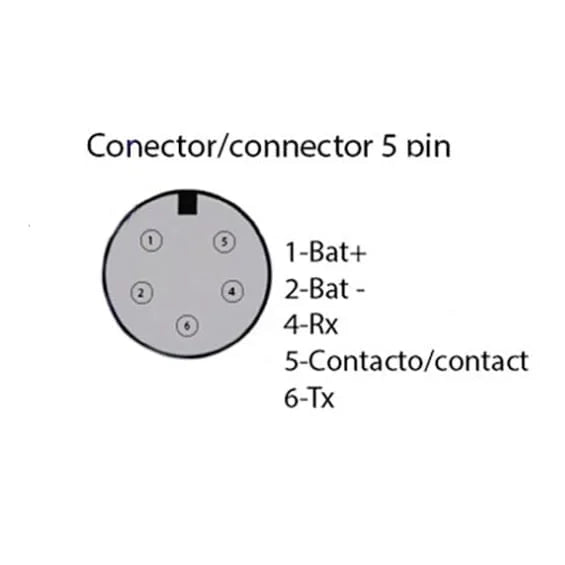

E06: A communication error is displayed. The screen cannot receive data from the controller; the Rx cable is cut or incorrectly connected.
E07: Controller communication error. The controller cannot receive data from the screen; the Tx cable is cut or incorrectly connected.

Compatible with the following models: compatible generic part
